Long Loop Steamer Machine

1.Technical parameter

2.Equipment USE

.  Under the condition of saturated steam, the operating temperature is 102 to 106℃, and the fixation is performed for the active dyes of the fabrics such as cotton, viscose, etc.

.  Under the condition of saturated steam, the operating temperature is 102 to 106℃, and the fixation is performed fof the acid dyes of the fabrics such as nylon, silk, etc.

. Under the condition of high temperature technology, the operating temperature is 160 to 190℃, and the fixation is performed for the scattered dyes of the fabrics such as chemical fiber, etc.

. Under the condition of hot air baking technology, the operating temperature is 100 to 190℃, and the fixation is performed for the paint of the fabrics such as cotton, etc.

3.Technical Features

. Unique appearance design is refreshing.

. Continuous ring formation mode is faster.

. The ring blowing of built-in fan is more saving.

. The structure of ultrastrong aluminum alloy cloth hanging roller is better, in which the embedment of the silica gel strip or outsourcing of glass fiber tape is prevented, i.e. the maintenance is reduced and the cost is saved.

. Novel saturated steam generator structure is capable of saving a large number of energy and reducing the production cost without consideration for the advantages and disadvantages of the quality of the external steam

. Unique wetting device is capable of cooling fast and providing enough humidity to interior of the box, and completing the cleaning for the nozzles under the condition of no stopping, so that the control for the temperature and humidity in the box will be more stable.

. Automation degree of electrical control is high, all the parameters are set, and the operation is simple and is easy to be learned and understood.

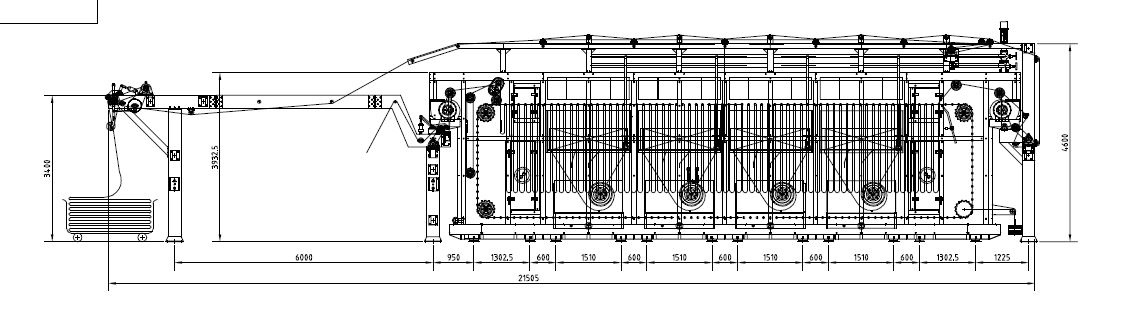

4.LMV650 series long ring rapid steamer flowchart

5.appliacation of machine
