Stenter Machine for Poly-cotton Fabric

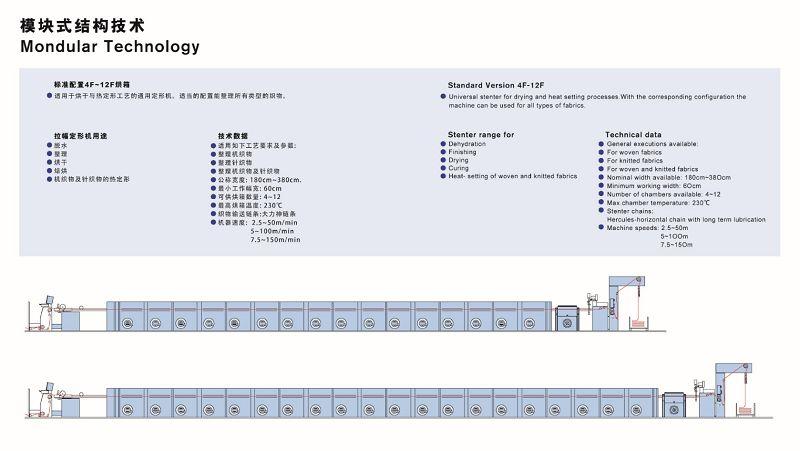

1.DESCRIPTION OF MACHINE

THE STENTER MACHINE IS USED FOR FIXING THE WIDTH OF FABRIC AND MAKE THE FABRIC DRY.

WORKING PROCESS:

FABRIC FEEDING (AUTO CENTERING EXPADER DEVICE)→

FEEDING CHAMBER→SIZING DEVICE(OPTIONAL)→INFRARED EDGE DETECTOR(OPTIONAL)→

BRUSH OVERFEEDING→FEEDING CAST IRON RAIL→6 SETTING CHAMBER

→1 GROUP COLD AIR→

CLOTH-OUT TRANSMISSION→2 PCS COLD WATER ROLLER→CLOTH FOLDING DEVICE

5.4.9 TENSION SENSOR

FUNCTION:

THROUGH FLOATING ROLLER TO GET SOME TENSION TOWARD FABRIC, INSTALL BEARINGS FOR NEGTIVE GUIDING ROLLER.

THE TENSION OF NEGTIVE GUIDING ROLLER IS MEASURED BY TENSION SENSOR.THE TWO SIDES OF THIS ROLLER ARE FIXED IN THE TENSION SENSOR. UPON MACHINE TYPE AND COMPONENTS, NEGTIVE GUIDING ROLLER CAN BE USED TO CONTROL THE FABRIC TENSION BETWEEN EXPANDING ROLLER AND DRIVING ROLLER.

DANGER NOTE:

BEFORE START MAINTAINENCE, SHOULD TURN OFF MAIN POWER AND LOCK IT. BESIDES, IT SHOULD PUT NOTICE “MAINTAINENCE” ON BOTH MAIN POWER AND CONTROL CARBINET.

MAINTAINENCE:

TENSION SENSOR:

OBVERSE - INSPECT TENSON SENSOR IF ANY DAMAGE, MAKE SURE IT’S SATBLE.

ESPECIALLY MORE ATTENTION TO THE CABLE TERMINAL ISOLATE PROTECTION NO ANY DAMAGE.

NEGTIVE GUIDING ROLLER:

CONCENTRIC- INSPECT THIS ROLLER CONCENTRIC LEVEL AND MAKE SURE NO MEASURE MISTAKE DUE TO NOT AT SAME LEVEL.
