Combined Polish-shearing Machine for Upholstery Fabric

1.DESCRIPTION OF MACHINE

SUITABLE FOR POLISHING AND SHEARING OF UPHOLSTERY FABRIC. FABRICS WILL BE SMOOTHER AND PLUMP.

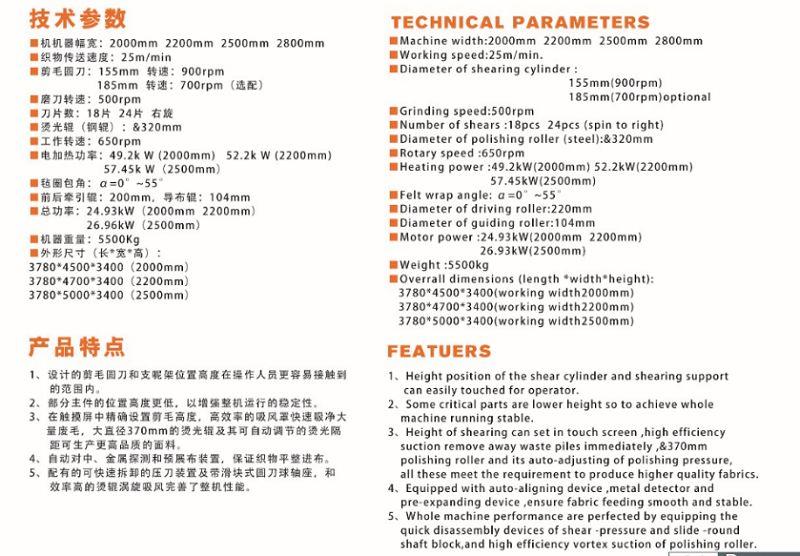

2.SPECIFICATION

FABRIC WORKING

WORKING SPEED：MAX 25M/MIN。

POWER：FRONT TRACTION1.1KW；BACK TRACTION1.5KW。

SPEED REGULATING DEVICE: INVERTER, THE TRACTION SYNCHRONIZATION.

POLISHING ROLLER TRACTION

POWER：11KW

ROTARY SPEED OF POLISHING ROLLER：700RPM

TRACTION：BY THE MOTOR THROUGH THE FOUR TRIANGULAR BELT DRIVE, MOTOR BASE CAN MOVE HORIZONTALLY, TO ADJUST THE BELT TENSION.

SHEARS CYLINDER TRACTION

POWER：7.5 KW

SHEARS CYLINDER：ROTARY SPEED  1000RPM；ROTARY SPEED OF GRINDING  500RPM

TRANSMISSION: FREQUENCY CONVERSION ADJUSTMENT

SHEARS CYLINDER IS DRIVEN BY A MOTOR THROUGH V BELT DRIVE DIRECTLY

FOLDER TRACTION

POWER：0.75KW

WORKING SPEED ：MAX 25M/MIN

SPEED ADJUSTMENT ：INVERTER。

SHEARING HEIGHT ADJUSTING DRIVE

POWER：0.37KW

ROTARY SPEED：195RPM

TRANSMISSION：WORM AND GEAR

POLISHING GAUGE ADJUSTMENT POWER：0.37KW

3.APPLICATION OF MACHINE
