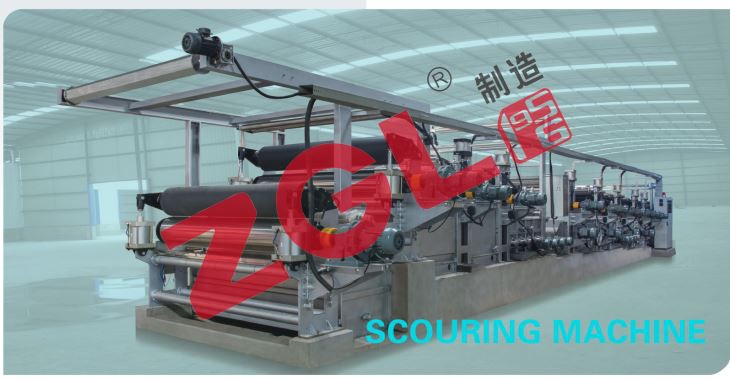

Flat Scouring Machine for Pile Fabric

1.DESCRIPTION OF MACHINE

LMV323 SCOURING MACHINE IS USED FOR WASHING THICK PILE FABRIC, SUCH AS BLANKETS, CLOUDY BLANKETS, COTTON TOWEL ETC.…

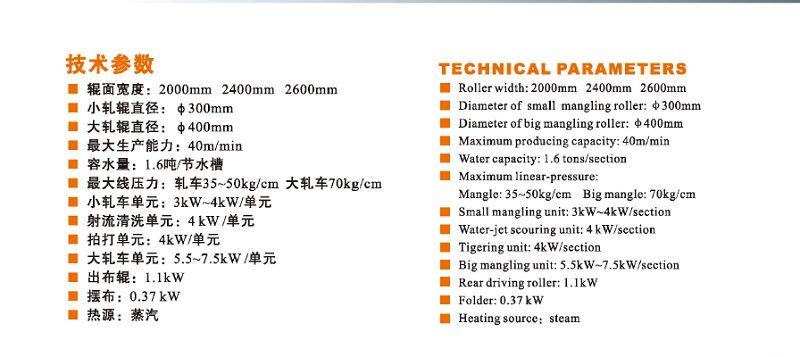

2.PARAMETER OF MACHINE：

MAIN PART SPECIFICATION (ELECTRICITY)：

3. MIAN PART CONSTRUCTION ( MECHNIACAL)：LMV323 IS CONSTRUCTED BY CLOTH FEEDING, WATER TANK UNIT, MANGLIING, TIGERING UNIT, BIG MANGLE UNIT, CHEMICAL LIQUID UNIT AND CLOTH-OUT PART

3.1 CLOTH FEEDER：COMPOSED OF VERTICAL SUPPORT 、BEAM、FEEDING ROLLER 、CLOTH TIGHTENING HOLDER AND ALIGNING GEAR （ADDITIONAL）ETC. COLUMNS, BEAMS ARE MADE OF Q235A THICK STEEL PLATE 3MM BENDS.

3.2 WATER TANK UNIT：COMPOSED OF WATER TANK (304 STAINLESS STEEL PLATE THICKNESS 2.5MM), STAINLESS STEEL COMPOSITE CLOTH GUIDE ROLLER, STAINLESS STEEL STEAM HEATING PIPE, WSS-483 DOUBLE METAL THERMOMETER, WATER BASE (Q235A16# STEEL PRODUCTION) ETC.

3.3 MANGLING UNIT：COMPOSED OF TWO PRESSURE ROLLER (UPPER PRESSURE ROLLER IS Φ 300MM ROLLER, THE RUBBER SURFACE FOR NITRILE RUBBER; PRESSING ROLLER Φ 300MM SEAMLESS STEEL PIPE STEEL ROLLER, BY Q235A AND 2.5MM THICK STAINLESS STEEL PLATE IS COMPOUNDED OF 304. IF THE 2600 WIDTH UPPER STEEL ROLLER, DOWNSIDE RUBBER ROLLER), SYNCHRONOUS REGULATING DEVICE AND IRON BASE ETC. PRESSURIZED BY Φ 160 CYLINDER SIDE PRESSURE. SYNCHRONOUS REGULATING DEVICE COMPRISES A SYNCHRONOUS, STAINLESS STEEL COMPOSITE CLOTH GUIDE ROLLER, ANGULAR DISPLACEMENT, SWING ARM, A HEAVY HAMMER

3.4 TIGERING UNIT：COMPOSED OF ATTACK ROLL, STAINLESS STEEL HEXAGON ROTARY SEAL, STAINLESS STEEL FLANGE SEALING SEAT, WATER TANK (304 STAINLESS STEEL PLATE THICKNESS 2.5MM), STAINLESS STEEL COMPOSITE CLOTH GUIDE ROLLER, STAINLESS STEEL STEAM PIPE, WSS-483 DOUBLE METAL THERMOMETER, WATER BASE SEAT (Q235A16# STEEL ).

TIGERING ROLLER IS COMPOSED OF SIX PAT PIECES (304 2.5MM THICK STAINLESS-STEEL PLATE BENDING), STAINLESS STEEL ROLLER Φ 76X4 AND THREE SUPPORT PLATE WELDED.

3.5 WATER-JET SCOURING UNIT：COMPOSED OF DRUM, ROLLER, STAINLESS STEEL ROTARY SEALING, WATER TANK (304 STAINLESS STEEL PLATE THICKNESS 2.5MM), STAINLESS STEEL COMPOSITE CLOTH GUIDE ROLLER, STAINLESS STEEL STEAM PIPE, WSS-483 DOUBLE METAL THERMOMETER, WATER BASE(Q235A16# STEEL PRODUCTION).THE ROTATING CYLINDER WITH HOLES BENDING PLATE WELDING MOLDING (304 STAINLESS STEEL PLATE THICKNESS 3MM), ROLLER AND A THICK 304 STAINLESS STEEL PLATE, STAINLESS STEEL 3MM 304 12MM THICK DISK, FLANGE WELDING

3.6 BIG MANGLE UNIT：COMPOSED OF TWO PRESSURE ROLLERS (UPPER PRESSURE ROLLER Φ 400MM ROLLER, THE RUBBER SURFACE FOR NITRILE RUBBER; BELOW ROLLER Φ 400MM SEAMLESS STEEL PIPE STEEL ROLLER, BY Q235A AND 3MM THICK STAINLESS STEEL PLATE IS COMPOUNDED OF 304. IF THE 2600 WIDTH UPPER STEEL ROLLER , DOWNSIDE RUBBER ROLLER), REINFORCEMENT MECHANISM, PANEL(COMPOSED OF STEEL PLATE WELDING MOLDING), SYNCHRONOUS REGULATING DEVICE. PRESSURIZED BY Φ 250 CYLINDER SIDE PRESSURE. SYNCHRONOUS REGULATING DEVICE COMPRISES A SYNCHRONOUS, STAINLESS STEEL CLOTH GUIDE ROLLER, ANGULAR DISPLACEMENT, SWING ARM, THE HAMMER.

3.7 CLOTH FOLDER：COMPOSED OF SUPPORT (Q235A 3MM THICK), COLD DRAWN TUBE, HEXAGONAL SHELL, 304 STAINLESS STEEL THICK 3MM BENDING OF 304 THICK 6MM BLOCKING PLATE.

3.APPLICATION OF MACHINE
