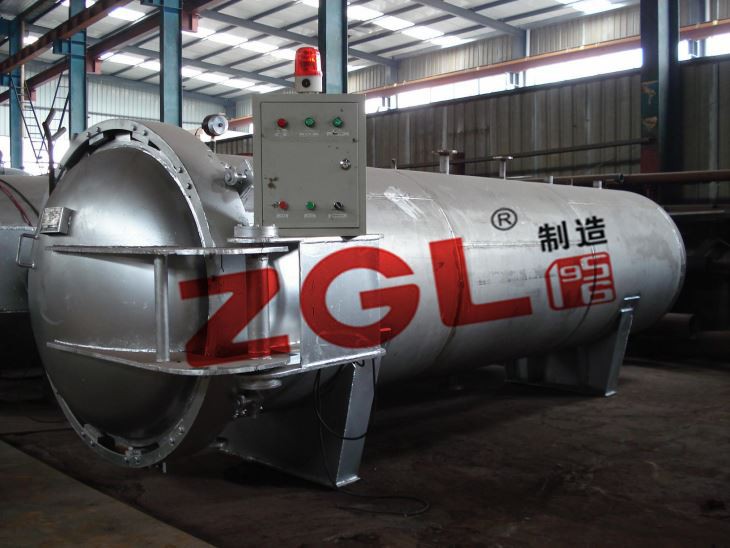

The machine is applicable to the ageing and fixation after the printing of the home textiles and fleece fabrics such as coral fleece,polar fleece,flannel,comfortable surface fleece and so on.and is also used for the baking and fixation of disperse dyes.
1.SPECIFICATION OF MACHINE
A.STEAMER： PRESSURE： 0.44MPa
B. TEMPERATURE：140℃
C.HEATING TUBE： PRESSURE： 0.53 MPa
D.TEMPERATURE：160℃
2.MAIN CONSTRUCTION AND EQUIPMENT
|
EQUIPMENT |
SIZE |
QUANTITY |
|
TUBE |
DIAMETER=2900mm，LENGTH：9000mm，Q235B， THICKNESS=14mm |
1SET |
|
HEATING TUBE |
1 SET |
|
|
DOOR OPEN TYPE |
MANUAL |
|
|
COMPUTER CONTROL |
CHINA BRAND |
1 SET |
|
MAIN ELETRICK COMPONENTS |
SIEMENS |
|
|
ELETRIC BOX |
STAINLESS STEEL |
1PC |
|
PRESSURE METER |
2PCS |
|
|
SAFETY VALVE |
2PCS |
|
|
BLOW-DOWN VAVLE（AIR TYPE） |
1PC |
|
|
HEATING VAVLE（AIR TYPE） |
1PC |
|
|
OFF HEATING VAVLE（AIR TYPE） |
1PC |
|
|
DECOMPRESSION（AIR TYPE） |
1PC |
|
|
STAM TRAP |
2PCS |
|
|
SAFETY INTERLOCK（AIR TYPE） |
1PC |
3. APPLICATION OF MACHINE
