Stenter Machine for Silk Fabric

1.DESCRIPTION OF MACHINE

THE STENTER MACHINE IS USED FOR FIXING THE WIDTH OF FABRIC AND MAKE THE FABRIC DRY.

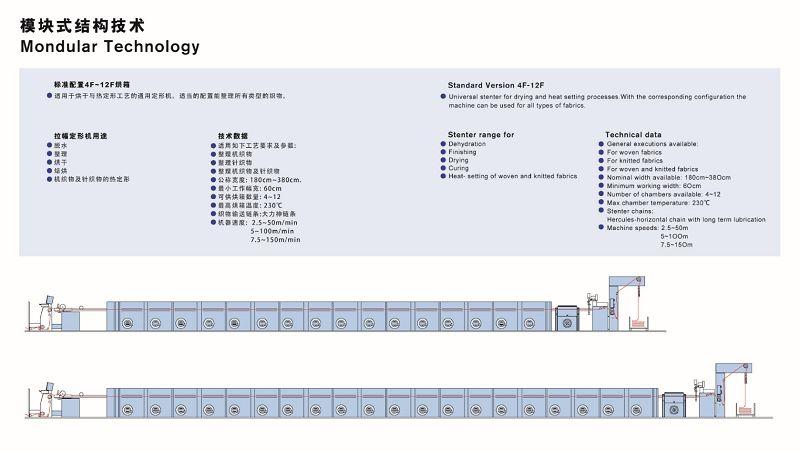

2.SPECIFICATION OF MACHINE

ROLLER AVAILABLE WIDTH:2000MM-3600MM

MAX WORKING WIDTH:2550MM

MIN WORKING WIDTH:700MM

NUMBER OF CHAMBERS:10PCS

FABRIC SUITABLE: KNIT FABRICS.

POWER:380V/50HZ/3PH

CONTROL POWER:220V

HEAT RESOURCE: HEATING OIL

WORKING SPEED:6~100M/MIN(CAN ADJUST UPON FABRIC NEEDS)

MAIN TRANSMISSION: AC MOTOR GEAR BOX AND INVERTER CONTROL,30KW

OVERFEED DEVICE: INDEPENDENT MOTOR DRIVING AND CLOSED CIRCUIT OVERFEED SYSTEM.

OVERFEED RATIO -10~100%

MOTOR OF PADDER:INVERTER CONTROL

HEAT RECYCLE FAN: INVERTER CONTROL,

AIR BLAST WAY: UP AND DOWN BLASTING AIR

MOTOR POWER:7.5KW, 7.5KW*2/PER CHAMBER

AIR EXHAUSTING FAN:2.2KW+4KW+7.5KW, INVERTER CONTROL

OUTSIDE PAINTING: SPRAYING PLASTICS

GUIDING ROLLER/GUIDING ROD

FUNCTION:

UPON DIFFERENT TYPE AND DESIGN,FABRIC ENTER AND EXIT CAN BE CONSISTED BY SINGLE OR MANY GUIDING ROLLER AND GUIDING ROD. CURRENT INTRODUCTION CAN BE FOUND IN THE CHART.

GUIDING ROLLER AND GUIDING ROD CAN GET FABRIC FEEDING BY DIFFERENT DIRECTION UPON NEEDS.THE ARRANGEMENT OF GUIDING ROD IS VERY PRECISE;

GUIDING ROLLER IS FIXED INTO BALL BEARINGS WHICH THE MAINTAINENCE REQUIRE IS LOW, WITH FABRIC FEEDING THEN ROLLER MOVES, DO NOT HAVE INDENPENDENT DRIVING DEVICE.

DANGER NOTE:

BEFORE START MAINTAINENCE, SHOULD TURN OFF MAIN POWER AND LOCK IT. BESIDES, MAIN POWER AND CONTROL CARBINET SHOULD PUT ON NOTICE “MAINTAINENCE”.

WHEN USE CLEANING EQUIPMENT AND LIQUID, MUST FOLLOW THE INSTRUCTION AND WARM ON THE PACKAGE.

MAINTAINENCE:

GUIDING ROD:

OBVERSE- INSPECT GUIDINGN ROD IF ANY DAMAGE, MAKE SURE IT’S FIXED ONTO BASE.

CLEAN- USE PROPER CLEANING EQUIPMENT TO CLEAN IT, ESPECIALLY MORE ATTENTION TO FABRIC WASTE ON THE ROTARY PARTS OF MACHINE. CAN’T USE HARD AND SHARP TOOL TO CLEAN TO AVOID DAMAGE SURFACE OF GUIDING ROD.

GUIDING ROLLER:

OBVERSE- INSPECT GUIDING ROLLER IF ANY DAMAGE, MAKE SURE IT’S FIXED INTO BEARINGS.

CLEAN- USE PROPER CLEANING EQUIPMENT TO CLEAN ROLLER. CAN’T USE HARD AND SHARP TOOL TO CLEAN IT ,TO AVOID DAMAGE.

BEARINGS:

LUBRICATION- THE BEARINGS OF GUIDING ROLLER SHOULD BE FULL OF LUBRICATING GREASE.

TRIAL ROTATION- INSPECT BEARINGS’ CONDITION DURING TRIAL ROTATION,

3.APPLICATION OF MACHINE
