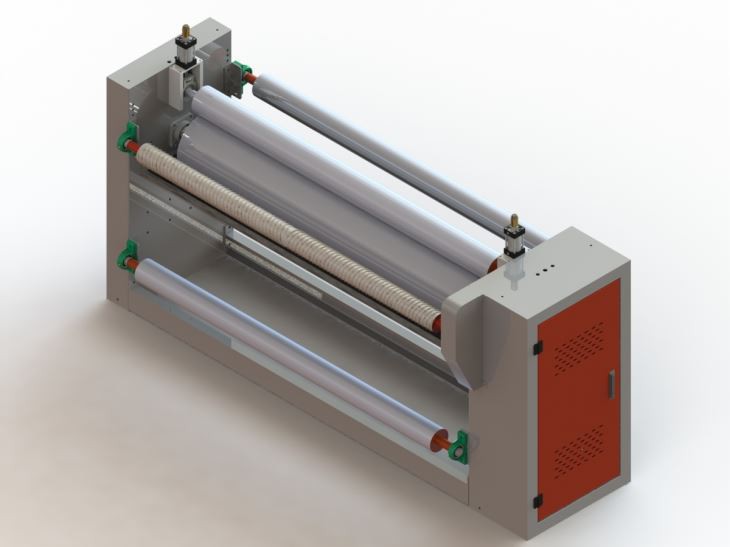

Textile Sizing Machine

1

设备幅宽

Working width

2000  2200  2400 2600 2800 3000 3200

2

车速控制

Working speed

最高80m/Min，牵引功率1.5kW，变频调速

Max working speed 80m/min, traction roller power is 1.5kw controlled by inverter

3

箱体机架

Body frame

箱体主体结构采用6mm钢板折弯制成,牢固可靠

Body of machine is made by 6mm bending steel plate

4

导布辊

Guiding roller

三组不锈钢包覆导布辊

Guiding roller surface use stainless steel

5

压辊

Pressing roller

压辊直径Φ102，制作精度高，辊面跳动误差小，由精密可调行程气缸推动，气动元件为知名品牌亚德客提供

Pressing roller diameter is Φ102 which is made high precision

6

上浆辊

Sizing machine

上浆辊直径Φ350，上浆辊表面特殊处理，挂浆均匀；上浆辊与压辊之间距离可精密调节，实现上浆均匀。

Diameter of sizing roller is Φ350，

7

展布辊

Expanding roller

展布电机功率1.1kW。展布辊，辊体不锈钢包覆，圆形钢丝为不锈钢材质。能够稳定可靠的将毛毯的皱纹和卷边展开。

Expanding roller motor power 1.1kw. Expanding roller is roll with stainless steel,the round wire is  stainless steel to ensure expand the edge of fabric.

8

浆料槽

Sizing chamber

加大的浆料槽，减少加料次数。浆料槽采用全不锈钢结构，包括两组球阀，全都是不锈钢

The sizing chamber is bigger than normal to reduce the period of adding chemical. The sizing chamber use stainless steel material.

1

设备幅宽/mm

Working width/mm

2000  2200  2400 2600 2800 3000 3200

2

长×宽×高

L*W*H

(2000幅宽)

2850*1000*1540

3

展布电机

Expanding roller

Y2-90L6-1.1kW

1

4

上浆辊牵引减速机

Sizing roller traction

motor reducer

NMRV75-20-90L4-1.5kW

1

5

上浆辊规格

sizing roller roller

φ360mm×2600mm

1

6

压辊规格

pressure roller size

φ150mm×2600mm

1

7

展布辊规格

Expanding roller size

φ100mm×2600mm

1

8

导布辊规格

Guiding roller size

φ100mm×2600mm

4

9

压辊气缸型号

Pressure roller air cylinder model

SCJ63×50-20-FA

2
