1.DESCRIPTION OF MACHINE THE STENTER MACHINE IS USED FOR FIXING THE WIDTH OF FABRIC AND MAKE THE FABRIC DRY. THE STENTER MACHINE USE GAS AS HEATING SOURCE. AND IT IS MORE ENVIRONMENT FRIENDLY THAN OIL HEATING. FUNCTION: THIS DEVICE IS USED FOR KNITTED FABRIC, TO GET FABRIC NO WINKLE CENTERING...
1.DESCRIPTION OF MACHINE
THE STENTER MACHINE IS USED FOR FIXING THE WIDTH OF FABRIC AND MAKE THE FABRIC DRY.
THE STENTER MACHINE USE GAS AS HEATING SOURCE. AND IT IS MORE ENVIRONMENT FRIENDLY THAN OIL HEATING.
FUNCTION:
THIS DEVICE IS USED FOR KNITTED FABRIC, TO GET FABRIC NO WINKLE CENTERING AND EXPANDING, INCLUDING FABRIC STRETCH UNIT AND EXPANDER CENTERING UNIT.
FABRIC STRETCH UNIT, MAIN PURPOSE IS GET FABRIC TIGHT ON EXPANDING ROLLER. IT INCLUDES 2 ROLLERS, THROUGH GEAR BOX CAN ADJUST POSITION OF THE 2 ROLLERS.
THE FABRIC EXPANDING, THROUGH OPPOSITE THREAD LINE ON THE ROLLER TO REACH EXPANDING RESULT, MOTOR DRIVES EXPANDING ROLLER, THE ROTARION DIRECTION IS OPPOSITE WITH FABRIC FEEDING DIRECTION.THE FABRIC ANGLE CAN BE ADJUSTED THROUGH HAND WHEEL GEAR BOX.
COLUMN EXPANDING DEVICE, IS CONSISTED BY INDEPENDENT FLAT PLATES WITH GLUE ON SURFACE.THE BALL SHAFT NECK CAN ROTATE IN THE END OF FLAT PLATE, THE ROUND DISK NOT ROTATES, BUT CAN LEAN PROPER ANGLE TO LEFT OR RIGHT SIDE. THE ROUND DIST IS ADJUSTED BY AIR CYLINDER.

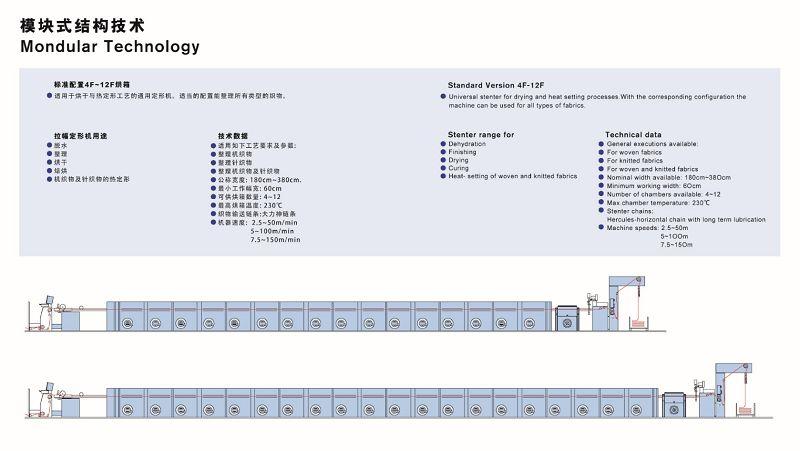

2.SPECIFICATION OF MACHINE
|
ITEM |
|
SPECIFICATION |
BRAND |
|
1 |
OFFTRACKING CONTROLLER |
SWA9511 |
E+L |
|
2 |
LOADCELL |
PD2525 |
E+L |
|
3 |
SELVEDGE DETECT SENSOR AND MOTOR |
FR5503… |
E+L |
|
4 |
SELVEDGE UNCURLER |
LP0301/LP0 |
E+L |
|
5 |
SELVEDGE CUTTER |
BT80 |
E+L |
|
6 |
SYNCHRONOUS SYSTEM |
|
LENZE |
|
7 |
INVERTER |
|
LENZE |
|
8 |
PLC PLC CONTROL SYSTEM |
S7-300 |
SIEMENS |
|
9 |
CONTROL MONDULAR |
|
SIEMENS |
|
10 |
ELECTRIC PARTS |
|
SIEMENS |
|
11 |
MAIN OPERATE TOUCHSCREEN |
15" |
SIEMENS |
|
12 |
INLET/OUTLET OPERATE |
7" |
SIEMENS |
|
13 |
SYNCHRONOUS MOTOR AND GEARBOX |
|
LENZE |
|
14 |
FRAME WIDTH ADJUST MOTOR AND |
|
SIEMENS |
|
15 |
GEARBOX AND MOTOR OF SPREAD |
|
SIEMENS |
|
16 |
CIRCULATION MOTOR |
7.5KW |
SIEMENS |
|
17 |
ENCODER FOR FRAME WIDTH ADJUSTMENT |
|
BAUMER |
|
18 |
AIR-CONDITIONER |
|
KUTU |
|
19 |
RAIL |
100MM |
CHINA BRAND CHJIOA |
|
20 |
WEARING STRIP |
13*9 |
CHINA BRAND |
|
21 |
HIGH TEMPERATURE GREESE |
|
DUPONT |
|
22 |
PNUEMATICAL PARTS |
|
NORGREN/S MC |
|
23 |
MOTORIZED 3-WAY VALVE |
DN65/DN50 |
RTK |
|
24 |
STOP VALVES |
|
KSB |
|
25 |
GAS BURNER |
|
MAXON |
3.APPLICATION OF MACHINE
