1. DESCRIPTION OF MACHINE LMV325 ROPE SCOURING MACHINE IS USED FOR POLYESTER FABRIC SUCH AS POLYESTER CLOTHS, POLYESTER FLEECE, AND SOME OTHER KIND OF POLYESTER FABRIC ETC.… 2. MAIN SPECIFICATION： POWER OF PART： 3.APPLICATION OF MACHINE
1. DESCRIPTION OF MACHINE
LMV325 ROPE SCOURING MACHINE IS USED FOR POLYESTER FABRIC SUCH AS POLYESTER CLOTHS, POLYESTER FLEECE, AND SOME OTHER KIND OF POLYESTER FABRIC ETC.…

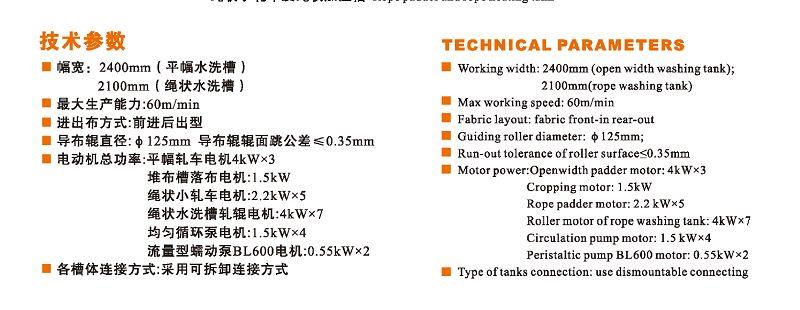

2. MAIN SPECIFICATION：
POWER OF PART：
NAME AND TYPE OF PART | MODEL OF MOTOR AND POWER | QUANTITY/SET | TOTAL POWER | BRANDE | ORIGIN |
FLAT PADDER PART | SINGLE-STAGE CYCLOIDAL REDUCER BWY22-35-4KW; | 3 | 12KW | GUOMAO | CHINA |
INVERTER：VFD055E43A | 3 |
| DELTA | CHINA | |
FOLDING TRACTION PART | REDUCER NMRV6315-1.5KW | 1 | 1.5KW | GUOMAO | CHINA |
INVERTER | 1 |
| DELTA | CHINA |
ROPE PADDER PART | 1、SINGLE-STAGE CYCLOIDAL REDUCERBWY18-17-2.2KW; | 5 | 11KW | GUOMAO | CHINA |
2、INVERTER：VFD022E43A | 5 |
| DELTA | CHINA | |
ROPE WASHING PART | 1、SINGLE-STAGE CYCLOIDAL BWY22-17-4KW; | 7 | 28KW | GUOMAO | CHINA |
2、INVERTER：VFD055E43A | 3 |
| DELTA | CHINA | |
UNIFORM CIRCULAR PARTS | CIRCULATING PUMP ICB(J)50-32-125-1.5KW | 4 | 6KW |
|
|
CIRCULATING PUMP | FLOW TYPE OF PERISTALTIC PUMP BL600-0.37KW | 2 | 0.74KW |
|
|
TOTAL |
|
| ABOUT 60KW |
|
|
3.APPLICATION OF MACHINE
