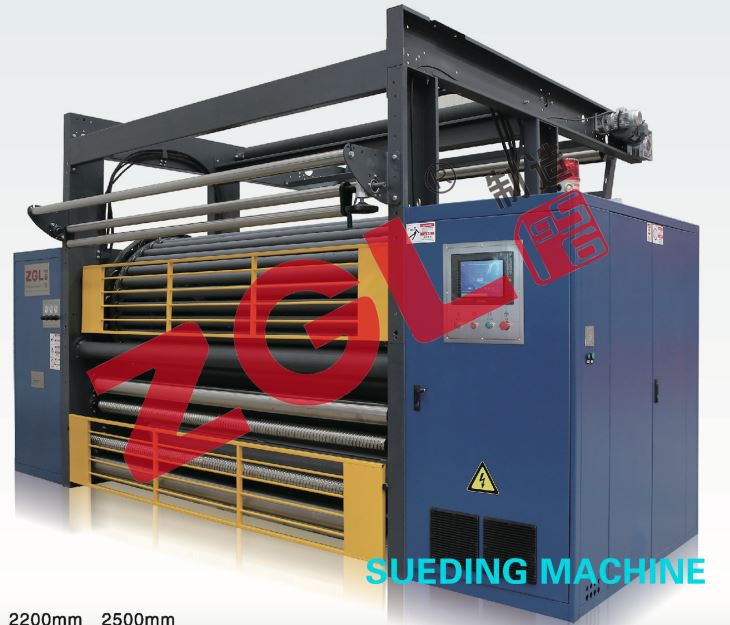

Raising Machine for Other Kind of Cotton Fabric

1. DESCRIPTION OF MACHINE

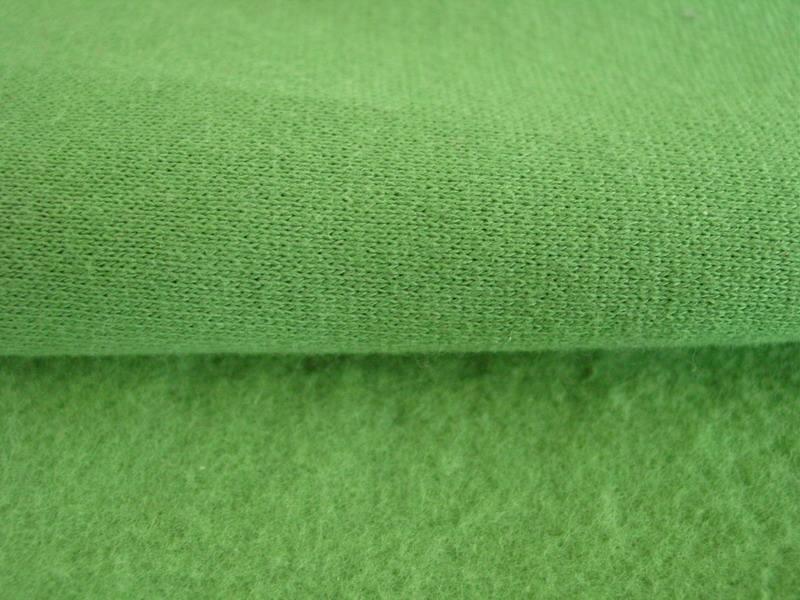

THIS MACHINE IS USED TO RAISE PILE FROM SURFACE OF FABRIC OR RAISE PILE FROM FRONT SIDE OF FABRIC TO BACKSIDE OF FABRIC.

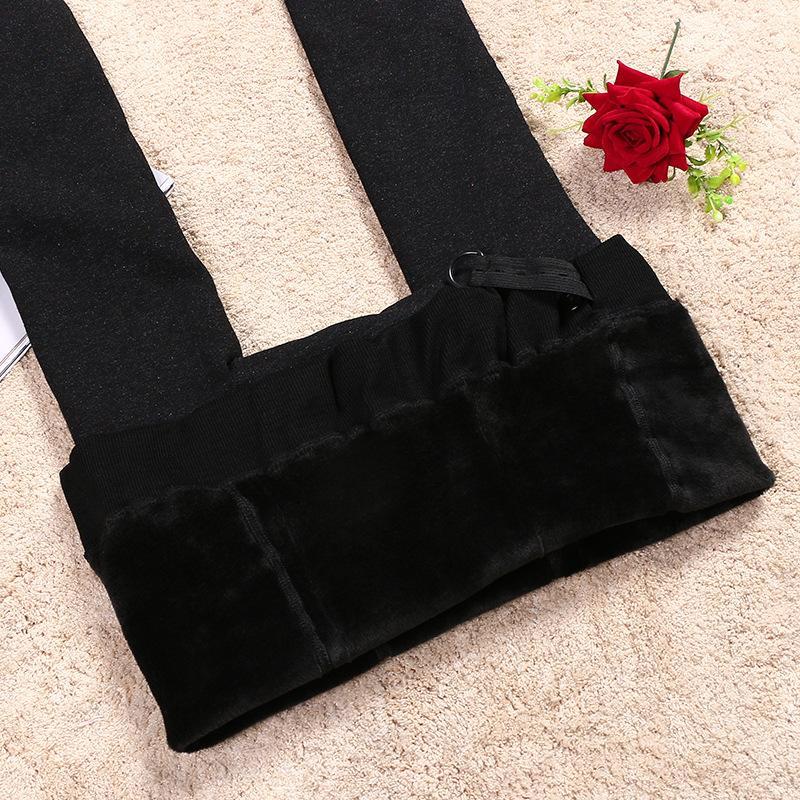

MB331C7036 Φ70 MM (36 RAISING ROLLERS) IS SUITABLE FOR COTTON FABRIC SUCH AS UNDERWEAR FABRIC,T-SHIRT, JEAN FABRIC ETC.…

PREPARATION

A) MECHANICAL ADJUSTMENT BEFORE RUNNING

MAKE SURE EVERY MECHANICAL PARTS FIX TIGHTLY.

MAKE SURE EVERY PARTS ARE FULL OF OIL INCLUDING FLAT SURFACE,AND THEN OPEN ALL THE VENTAGES OF REDUCER,THIS IS VERY IMPORTANT AS IT CAUSES AIR EXPANSION INSIDE OF REDUCER WHEN MACHINE WORKS,THAT LEADS TO LUBRICATING OIL OUTFLOW THE SEAL RING OF REDUCER.

CHECK IF THE BELT ,GEAR AND OTHER PARTS SEPERATED FROM EACH OTHER OR NOT,CHECK IF TENSION OF BELT SET PROPER OR NOT.

CHECK THE HEIGHT AND CONDITION OF BRUSH.(THE BRUSH IS INSTALLED PROPERLY AND SHOULD BELOW 2-3MM OF BEND TOOTH FOR RAISING FILLET IN CSASE ANY POSSIBLE DAMAGE)

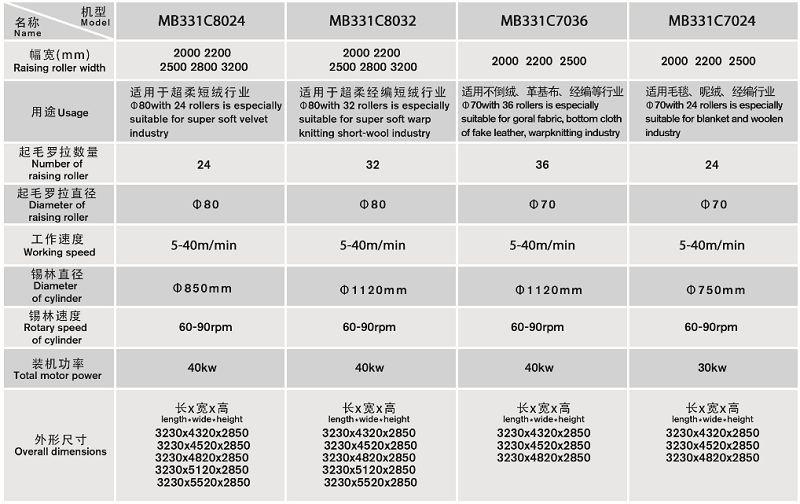

2. SPECIFICATION

DIAMETER OF DRUM: 1500MM

ROTATION SPEED:60-90RPM

WORKING SPEED: 5-40 M/MIN

INSTALLED POWER: 40KW

3.APPLICATION OF MACHINE
