Burn Out Machine For Velvet

1 DESCRIPTION OF MACHINE

BURN OUT MACHINE IS USED FOR MAKING BURN-OUT DEISGN ON MANT KIND OF POLYESTER FABRIC. FOR EXEMPLE: PLUSH, VELVET, FLANNEL AMD SPANDEX FABRIC ETC…

IT CAN ALSO PRINT DESIGN ON MACHINE IN SAME TIME LIKE ROTARY PRINTING MACHINE.

2. SPECIFICATION

● main components of machine

● fabric inlet system (AUTOMATIC centrering device, fabric tighting)

● print HEAD (BROADCLOTH device, glue device, cleaning bearing system)

● drying part (HEATING chambers, cyclic net belt)

● fabric outlet device

This machine use life is about 12-15 years. And the using space is around L 26m x W 4m H 4.5m.

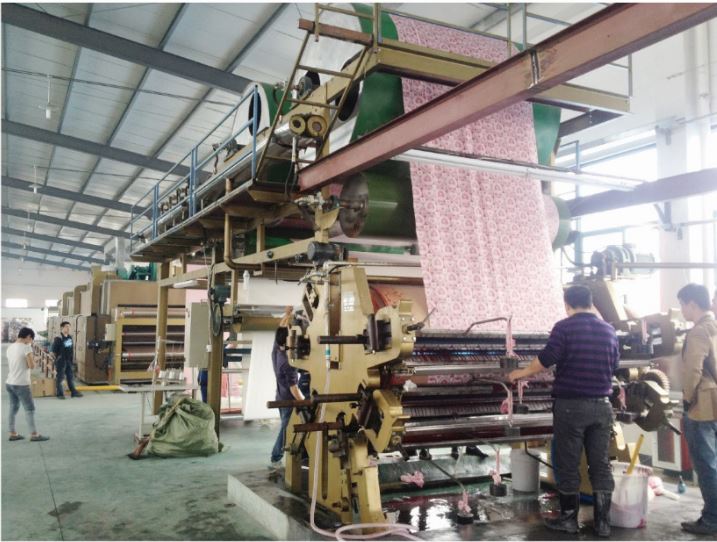

A. PRINT HEAD WITH DRYING ROLLER

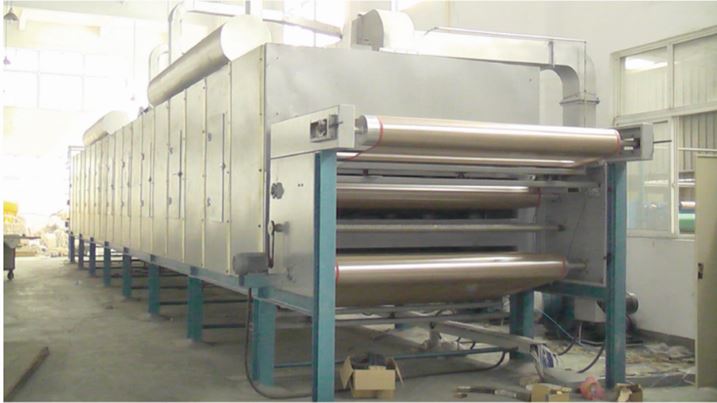

B. HEATING CHAMBER

HEATING CHAMBER CAN CHOSE DIFFERENT KIND OF HEATING SOURCE: GAS, ELETRIC AND OIL.

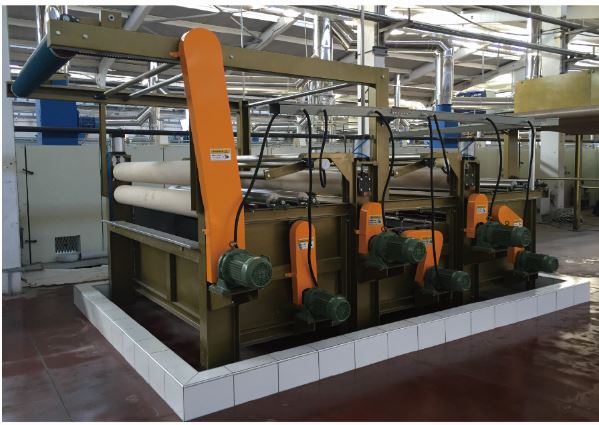

C. WASHING UNIT

3.APPLICATION OF MACHINE
