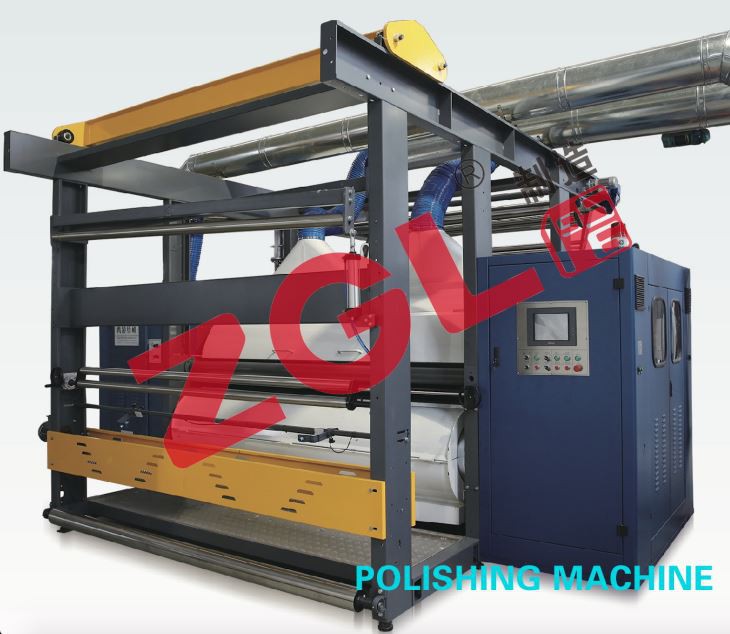

Polishing Machine for Wool Fur

1. DESCRIPTION OF MACHINE

SME472CH DOUBLE ROLLERS POLISHING MACHINE IS SUITABLE FOR WOOL FUR

THE STRETCHER INCLUDES TWO STRETCHING ROLLERS AND STRETCHING SUPPORT, AS WELL AS HAND WHEEL WORM GEAR AND WORM DEVICE.

CRANE PARTS, CONSISTED BY 16# JOIST STEEL, FOUR VERTICAL WHEELS, ONE CHAIN BLOCK (PROVIDED BY USER), COULD BEAR 1.5 TONS.

FOLDING DEVICE INCLUDES FOLDING ROLLER, CHAIN WHEEL, ROCKING BEAM AND ETC.

RACK PART INCLUDES BEAM AND STAND COLUMN MADE BY 3MM STEEL PLATE, CROSS-LINKED BY FOUR

CROSS-BRACE AND TWO FOOTBOARDS, FIXED ON THE WALLBOARD BY BOLTING.

POLISHING PART INCLUDES POLISHING ROLLER, COLLECTING RING, BRUSH YOKE, TRANSMISSION OF POLISHING ROLLER.

UP AND DOWN SUCTION PART IS COMPOSED BY UP AND DOWN SUCTION HOOD AND TUBES.

SPINDLE UNIT IS COMPOSED BY SYNCHRONIZING SHAFT, SHIFTING FORK, CONNECTING ROD AND CYLINDER.

FELT IS COMPOSED BY FELT COLLAR, INITIATIVE ROLLER AND PASSIVE ROLLER.

WRAP ANGLE IS COMPOSED BY WRAP ROLLER DRIVEN BY TWO AIR CYLINDERS.

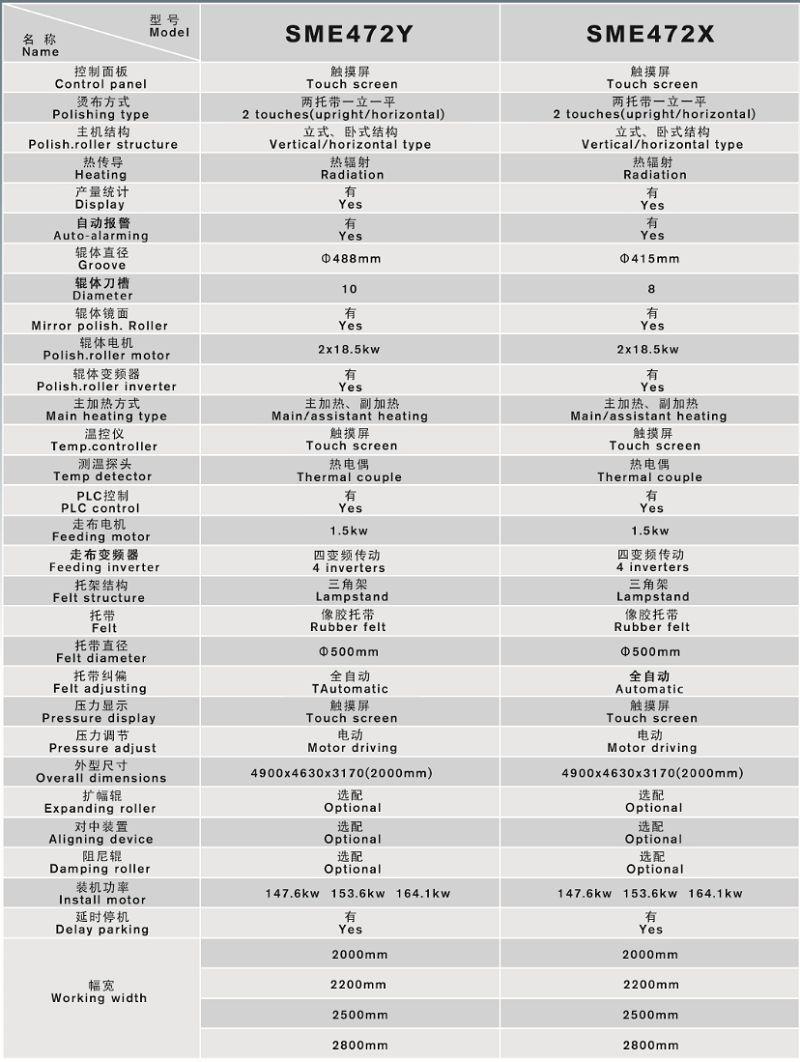

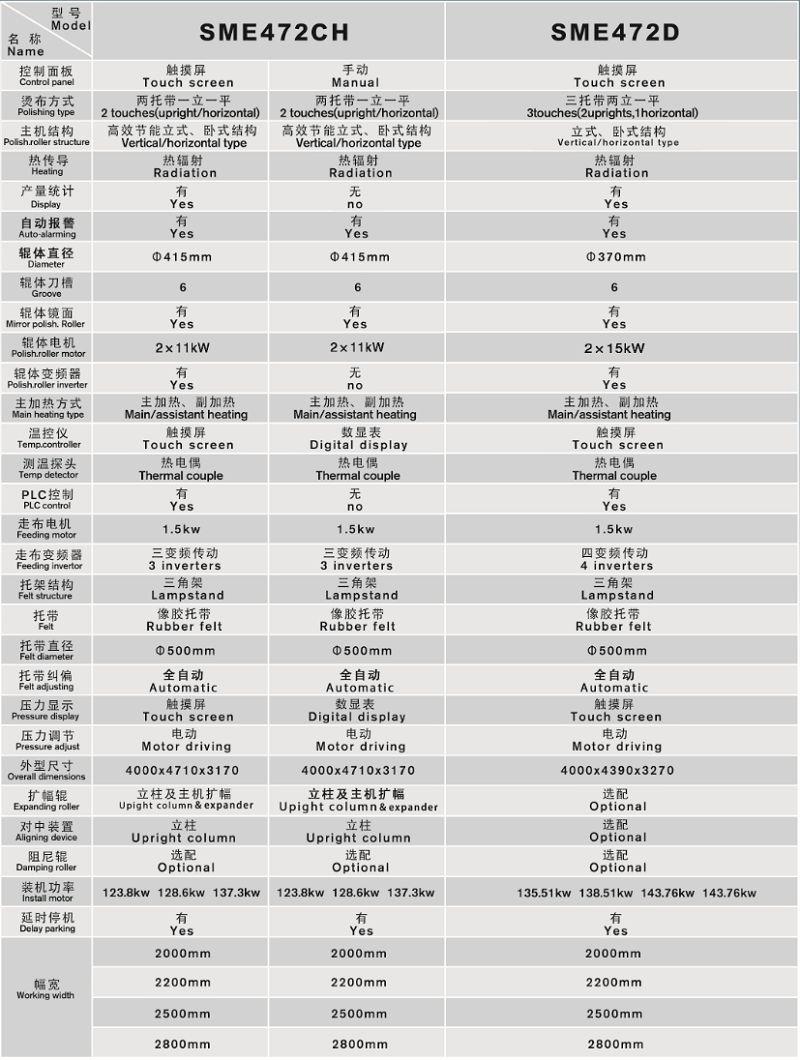

2. SPECIFICATION OF MACHINE

3.APPLICATION OF MACHINE
