Raising Machine for Wool Fabric

1. DESCRIPTION OF MACHINE

THIS MACHINE IS USED TO RAISE PILE FROM SURFACE OF FABRIC OR RAISE PILE FROM FRONT SIDE OF FABRIC TO BACKSIDE OF FABRIC.

MB331C7036 Φ70 MM (36 RAISING ROLLERS) IS SUITABLE FOR WOOL FABRIC.

WHEN P RAISING ROLLER BELT IS AT TIGHT SIDE, TENSION POLLEY AIR PRESSURE SHOULD BE BIGGER, NORMALLY 0.3-0.5MPa. WHEN C-P RAISING ROLLER, BELT IS AT LOOSEN SIDE, TENSION POLLEY AIR PRESSURE SHOULD BE SMALLER, NORMALLY 0.05-0.15MPa. UNDER CONDITION THERE’S CERTAIN RAISING STREGTH, IT’S BETTER TO TAKE SMALLER AIR PRESSURE, BIGGER PRESSURE WILL SPEED UP BEARING WEAROUT FOR BELT AND RAISING ROLLER.

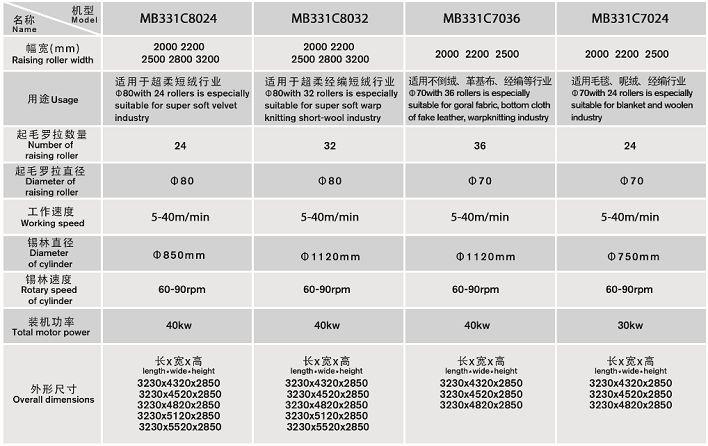

2. SPECIFICATION

3. APPLICATION OF MACHINE
