Raising Machine For Polar Fleece

1. Description of machine

This machine is specially designed for raise circular knitting fabric such as polar fleece…

there are two gears (the outer teeth of gear have right and left direction), one of them controls the rotation of raising rollers and the other controls the rotation of covering rollers.The gear which controls raising rollers is driving by large cylinder, through a two-stage sprocket; a pair of hanging wheel (replaceable gear); when the number of teeth of the gears are 45/ 45, the ring gear speed is 3.47 rpm, the direction of the raising is opposite of the direction of large cylinder .the gear which controls of Covering roller is also driven by the large cylinder, by a pair of sprockets

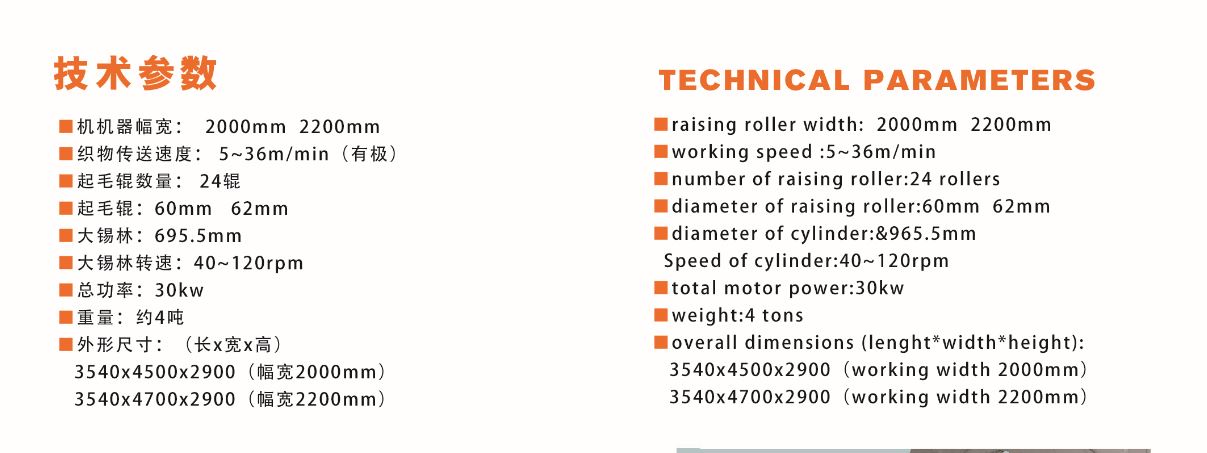

2. PARAMETERS

raising roller width:  2000mm, 2200mm

working speed :5~36m/min

number of raising roller:24 rollers

diameter of raising roller: &60mm &62mm

Speed of cylinder:40~120rpm

total motor power:30kw

weight:4 tons

overall dimensions (lenght*width*height):

3540x4500x2900（working width 2000mm）

3540x4700x2900（working width 2200mm）

3.APPLIACATION
