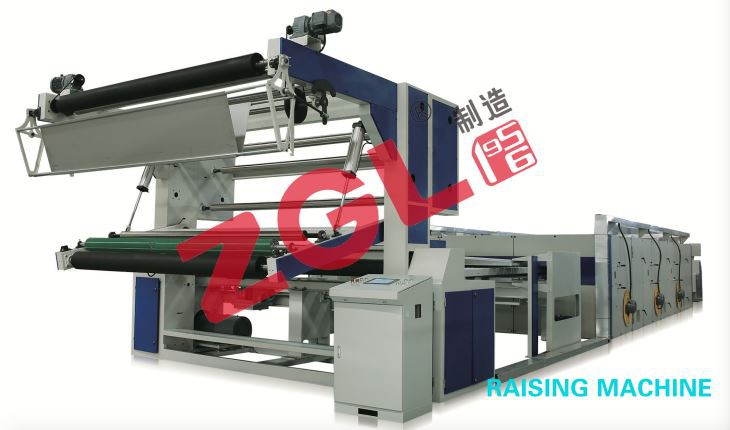

Gas Hearing Stenter Machine for Cotton

1.DESCRIPTION OF MACHINE

THE STENTER MACHINE IS USED FOR FIXING THE WIDTH OF FABRIC AND MAKE THE FABRIC DRY.

THE STENTER MACHINE USE GAS AS HEATING SOURCE. AND IT IS MORE ENVIRONMENT FRIENDLY THAN OIL HEATING.

MAIN COMPONENTS:

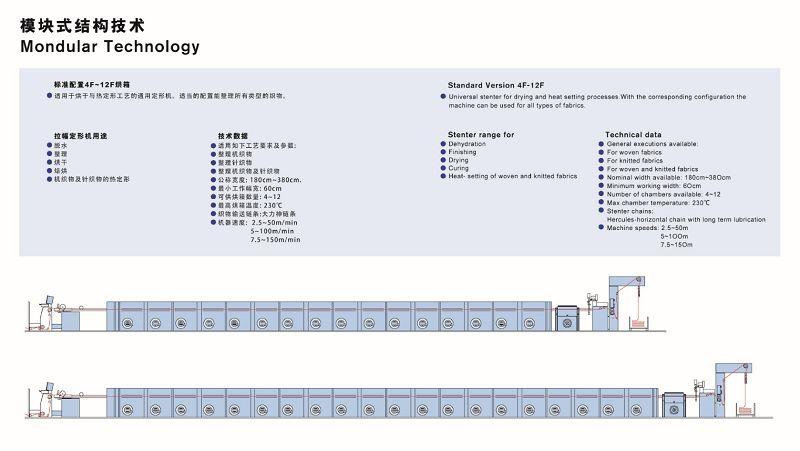

STENTER MACHINE INCLUDES INFEED PART, ENTER OVERFEED PART, RAIL PART, CHAMBER PART,HUMIDITY ELIMINATION PART, FABRIC EXIT PART,ELECTRIC CONTROL CABINET AND OPERATION PANEL.

WORKING PRINCIPLE:

IT SENDS FABRIC INTO STENTER MACHINE BY FABRIC EDGE TRACKER,MACHINE AUTOMATICALLY PUT TWO EDGES OF FABRIC ON THE NEEDLE PLATE,THE NEEDLE PLATE ,WITH MACHINE RUNNING SEND FABRIC INTO CHAMBER; THE CHAMBER IS HEATED BY ELECTRICITY,FAN PUT AIR INTO IT,AFTER FABRIC PASSES THROUGH  DIFFERENT TEMPERATURE RANGE HOMOTHERMAL CHAMBER,WHEN FABRIC GOES TO THE END OF MACHINE THEN FIRST COOL FABRIC AFTERWARDS ELIMINATE STATIC,FOLDING ROLLER GET FABRIC INTO TROLLEY, FINALLY SMOOTH AND NICE FABRIC COMES.

EXPANDING ROLLER

FUNCTION

ACCORDING TO DIFFERENT TYPE AND CONFIGURATION OF MACHINE, ADOPT ONE EXPANDING ROLLER, TWO OR THREE EXPANDING ROLLER. FUNCTION AND MAINTENANCE OF EACH EXPANDING ROLLER IS SAME.

EXPANDING ROLLER IS USED TO REMOVE THE CREASE ON FABRIC.

THE FUNCTION OF FABRIC EXPANDING IS ACHIEVED BY THE TWO OPOSITE DIRECTION SPRIALS ON SURFACE OF ROLLER.

DANGEROUS ALARM

BEFORE MAINTENANCE, MUST CUT OFF THE POWER AND LOCKED. ON AREA OF THE MAIN POWER BUTTON AND OPERATION PLATFORM, WORD “MAINTENANCE” MUST BE SEEN.

LUBRICANT AS SPEICAL WASTE, MUST BE TREATED BY WASTE DISPOSAL REGULATIONS MADE BY GOVERNMENT OF COUNTRY AND LOCAL.

WHEN USE CLEANING EQUIPEMENT AND DISSOLVANT, MUST OPERATE THE RIGHT WAY ACCORDING TO ITS USING GUIDE AND ALARM.

DANGEROUS CAREFURE!. WHEN IT IS NEED TO ADJUST AND CHECK DURING MACHINE RUNNING, MUST TAKE CARE TO AVOID INJURY OF THE MOVING OR HIGH TEMP. COMPONENTS. TOOLS ARE NOT ALLOWED TO PUT IN THE AREA OF THE MACHINE.

MAINTENANCE

EXPANDING ROLLER

EYE-LOOKING AT THE EXPANDING ROLLER(1) TO CHECK WHETHER THERE IS SOME PART BROKEN.

CLEANING------USE PROPER CLEANING EQUIPMENT TO CLEAN THE EXPANDING ROLLER, ESPECIALLY THE THREAD TWINING ON THE EXPANDING ROLLER. DO NOT USE SHARP OR HARDNESS TOOL TO THE CLEANING JOB AVOID ROLLER SURFACE DAMAGE.

MOTOR

EYE-LOOKING AT THE MOTOR (2) AND CONNECTION WIRE AND FIXING, WHETHER THERE IS SOME BROKEN, TO ASSURE IT STABLE AND FIXING. ESPECIALLY TO CHECKWHETHER THERE IS DAMAGE OF ELECTRIC CABLE.

CLEANING-----COOLING FAN AND PROTECTIVE FENCE MUST KEEP CLEAN AND DRY.

GEAR-BOX

EYE-LOOKING AT THE GEAR-BOX (4) AND ITS FIXING WHETHER THERE IS SOME BROKEN, MAKE SURE THE BASE TABLE FIXED STABLE AND NONE SEEPAGE.

LUBRICATING-------THE GEAR-BOX SHOULD FULL OF LUBRICATING OIL. IT IS NEED TO REPLACE JUST WHEN THE EQUIPMENT PERMANENT REPARIS.
